Stainless Steel Welded Wire Mesh Panels & Rolls

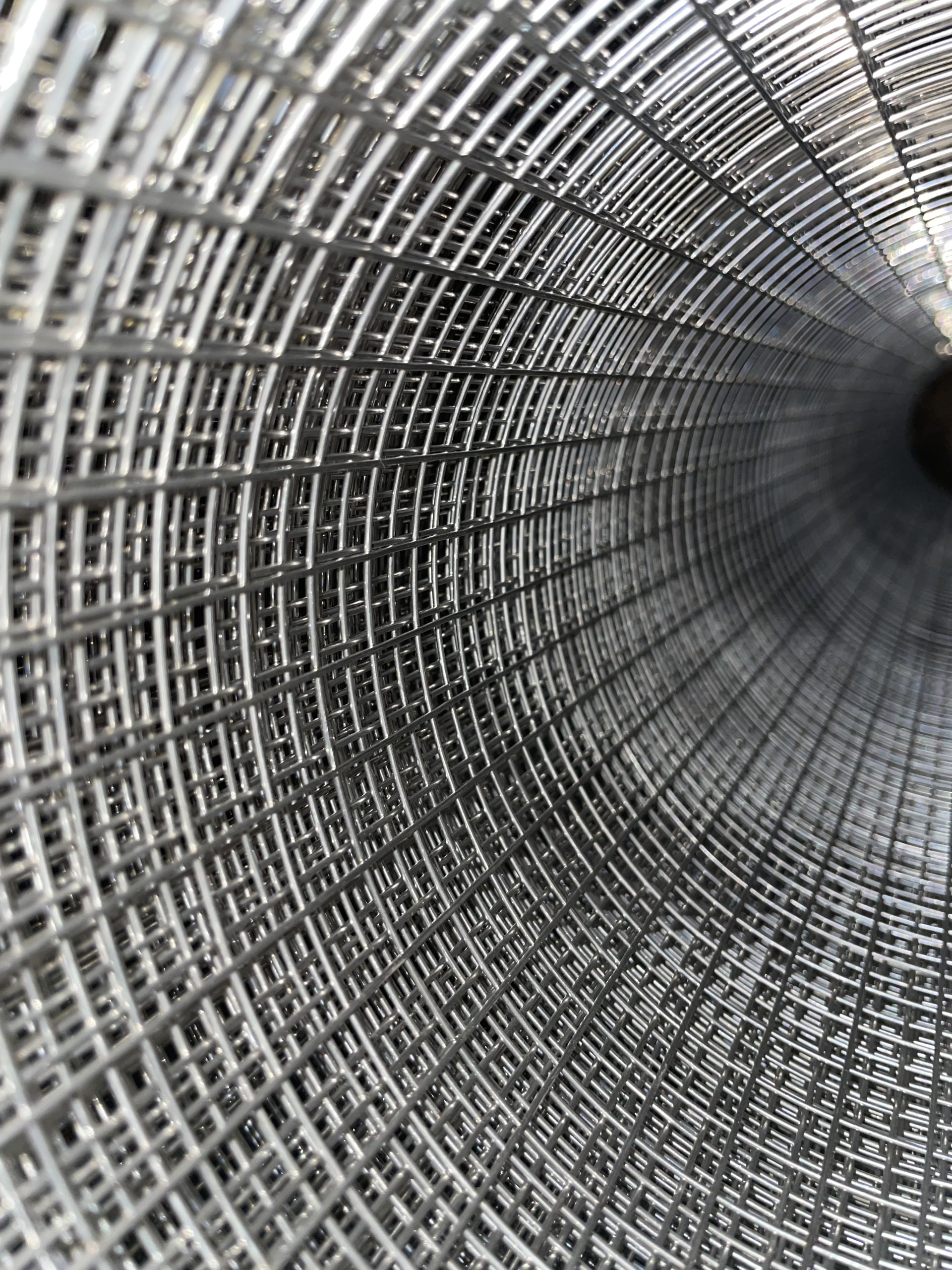

Welded Roll int

Advanced Engineering Group stock a wide range of stainless steel welded mesh panels & rolls . Our welded mesh panels & rolls are available in Grade 304 and Grade 316 with either square or rectangle apertures.

Welded mesh panels are commonly used for:

  1. Bird Aviary Mesh
  2. Reinforcing Mesh
  3. Landscaping/ Greenwalls
  4. Machinery/Guard Mesh
  5. Gabions
  6. 358 Anti-Climb

We offer welded mesh panels from our branch in Brisbane  and we can organise delivery to any location across Australia.

Panels Product Info (PDF)

Rolls Product Info (PDF)

Care & Maintenance (PDF)

Stainless Steel Weld Panels

Mesh mm Diam mm Width mm Length mm Grade Panel Kg
25 x 25 2.5 1200 2400 304 9.2
25 x 25 2.5 1200 2400 316 9.2
25 x 25 3 1200 2400 304 12.9
25 x 25 3 1200 2400 316 12.9
25 x 50 3 1200 2400 304 9.7
40 x 40 3 1200 2400 304 8.1
40 x 40 3 1200 2400 316 8.1
40 x 40 4 1200 2400 304 14.6
40 x 40 4 1200 2400 316 14.6
50 x 50 3 1200 2400 304 6.5
50 x 50 3 1200 2400 316 6.5
50 x 50 4 1200 2400 304 11.7
50 x 50 4 1200 2400 316 11.7
50 x 50 5 1200 2400 304 18.3
50 x 50 5 1200 2400 316 18.3
50 x 75 5 1200 2400 304 15.3
75 x 13 4 1200 2400 316 26
100 x 100 3 1200 2400 304 3.4
100 x 100 3 1200 2400 316 3.4
100 x 100 5 1200 2400 304 9.4
100 x 100 5 1200 2400 316 9.4
100 x 100 6 1200 2400 304 13.5
100 x 100 6 1200 2400 316 13.5
100 x 100 8 1200 2400 316 24
150 x 150 6 1200 2400 316 9.4
200 x 200 6 1200 2400 316 7.1

Stainless Steel Welded Rolls

Mesh mm Diam mm Width mm Grade % Open Approx Roll Kg
6.35 x 6.35 0.63 190.5 316 81 4.5
6.35 x 6.35 0.63 916 316 81 22
6.35 x 6.35 0.63 1220 316 81 29
6.35 x 6.35 0.8 1220 304 76 46
6.35 x 6.35 0.8 1220 316 76 46
9.5 x 9.5 0.8 1220 316 84 30
9.5 x 9.5 1 1220 304 80 48
9.5 x 9.5 1 1220 316 80 48
9.5 x 9.5 1 1525 304 80 60
9.5 x 9.5 1 1525 316 80 60
11.0 x 11.0 0.8 1220 304 86 27
11.0 x 11.0 0.8 1220 316 86 27
12.7 x 12.7 1 1220 316 85 36
12.7 x 12.7 1.2 915 304 82 39
12.7 x 12.7 1.2 1220 304 82 52
12.7 x 12.7 1.2 1220 316 82 52
12.7 x 12.7 1.2 1525 304 82 64
12.7 x 12.7 1.6 1220 304 82 64
12.7 x 12.7 1.6 1220 316 76 92
12.7 x 25.4 1.6 1220 304 82 70
19.05 x 19.05 1.6 1220 316 84 62
19.05 x 19.05 2 1220 316 80 95
25.4 x 25.4 1 1220 316 92 18
25.4 x 25.4 1.2 916 316 91 20
25.4 x 25.4 1.2 1220 316 91 26
25.4 x 25.4 1.2 1525 316 91 32
25.4 x 25.4 1.6 1220 316 88 46
25.4 x 25.4 2 1220 316 85 72
50.8 x 50.8 2 1220 316 90 37

Uncoated Mesh (Mill Finish)
Length: 30 metre rolls and up to 30 metres in multiples of 1 metre
Min Supply: 2 metres

Stainless Steel Welded Rolls - Black Finish

Item Mesh mm Diam mm Width mm Grade Approx Roll Kg
B WM-06.3/0.8-1224 B 6.35 x 6.35 0.80 1220 304 46
B WM-09.5/1.0-1224 B 9.50 x 9.50 1.00 1220 304 48
B WM-12.7/1.0-1224 B 12.7 x 12.7 1.00 1220 304 36

Powder coated Black

Sold In 30m rolls only
